Convolution - BIP Labs

The image smiley.png will be convolved with several PSF. Before applying the convolutions, you need to convert the image into float (skimage.img_as_float).

Note

It can be very useful for analyzing the results to display the colorbar alongside each image. You can follow the code below (img is the image to show):

import matplotlib.pyplot as plt

plt.figure()
ax = plt.imshow(img, "gray")
plt.colorbar(ax)
plt.show()

What does the acronym PSF stand for?
Compute the convolution between the image and a Gaussian kernel (skimage.filters.gaussian).
Compute the convolution between the image and the kernel defined by
$h = \begin{pmatrix} 1 & -1 \end{pmatrix},$
by using scipy.ndimage.convolve and initializing $h$ with numpy.array. Note that $h$ being an image, it should be defined as a 2D matrix!
Compute the convolution between the image and a kernel defined by an array of 30 elements equal to 1/30 (numpy.ones).

Correction¶

📌 Commentaires pour les intervenants

Conseillez aux étudiants de représenter les PSF, en plus du résultat de la convolution. Laissez-les réfléchir un peu pour savoir comment ils peuvent s’y prendre (sachant que pour la gaussienne, on n’utilise pas une matrice, mais la fonction gaussian). L’idée est de convoluer un dirac (qu’il faut alors créer !). Cette idée est donnée dans la correction.
Beaucoup d’étudiants risque de ne pas oublier les deux paires de crochets pour définir la deuxième PSF : h = np.array([[1, -1]]). Dans ce cas, on peut leur donner la solution assez rapidement.
Ils peuvent également essayer d’utiliser d’autres PSF.

import numpy as np
import scipy as sp
import skimage as ski
import skimage.io as io
import skimage.filters as flt
import matplotlib.pyplot as plt

Objectives¶

Know how to use the function scipy.ndimage.convolve to apply the convolution product.
Be able to identify the kernel applied on a convolved image.

Computing the convolution between two images¶

The point spread functions¶

Before convolving the image by the different filters, it is interesting to display the filters themselves. In case there is no explicit matrix to represent a filter, as with the Gaussian filter skimage.filters.gaussian, we can simply convolve the filter by an image containing only one non-zero pixel, (this image is sometimes denoted $\delta$ ).

The function skimage.filters.gaussian defines a Gaussian kernel. The result of the function is the convolution product of this Gaussian kernel with the image given as a parameter of the function.

The two last kernels are defined with (note the double brackets, so as to get a 2D array):

h = np.array([[1, -1]])

and

N = 30
h = np.ones((1,N)) / N

The convolutions¶

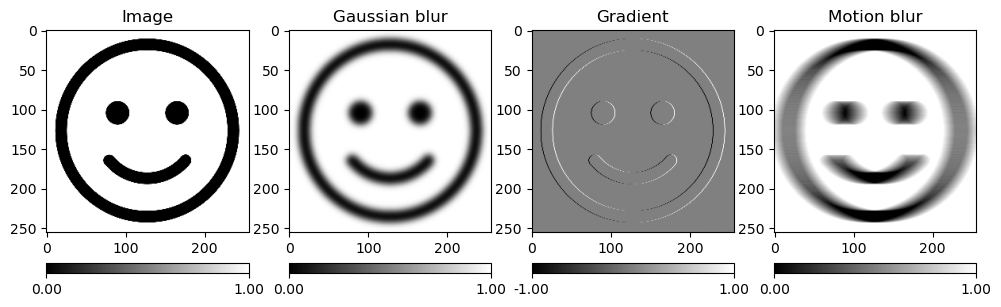

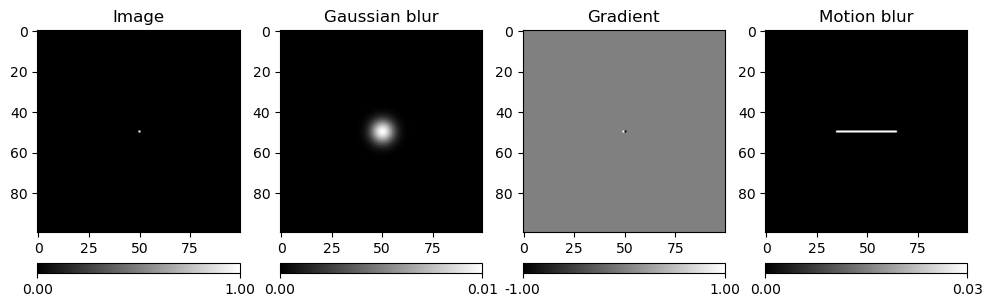

The results of the convolutions are shown below, for both the $\delta$ (first row) and the smiley (second row).

# Filtres à appliquer

def identity(f):
    return f

def gauss(f):
    return flt.gaussian(f,4)

def diff(f):
    h = np.array([[1, -1]])
    return sp.ndimage.convolve(f, h)

def mouv(f):
    N = 30 # longueur du filtre
    h = np.ones((1,N)) / N
    return sp.ndimage.convolve(f, h)

def duplicate(f):
    h = np.zeros((10,1))
    h[0,] = 1
    h[9,] = 1
    return sp.ndimage.convolve(f, h)

# Dictionnaire des convolutions
convs = {
    "Image": identity,
    "Gaussian blur": gauss,
    "Gradient": diff,
    "Motion blur": mouv,
    #"Dédoublement": duplicate
}

K = len(convs)

# Convolutions

# Boucle sur les images
for f in images:

    # Nouvelle figure
    fig = plt.figure(figsize=(12,8))
    i = 0

    # Boucle sur les convolution
    for name,c in convs.items():

        i = i + 1
        ax = plt.subplot(1,K,i)
        psm = plt.imshow(c(f), cmap="gray")
        plt.title(name)
        cbar = fig.colorbar(psm, ax=ax, orientation="horizontal",
                            pad = 0.05, shrink=1.0)
        cbar.set_ticks([ c(f).min(), c(f).max() ])
        cbar.set_ticklabels([ f"{c(f).min():.2f}" , f"{c(f).max():.2f}" ])

The “gradient” image (third image) brings out the vertical contours of the image. We will reuse this filter in Edge detection.
